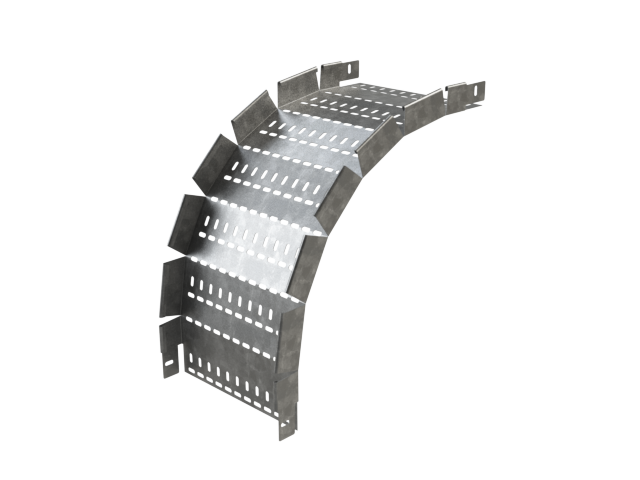

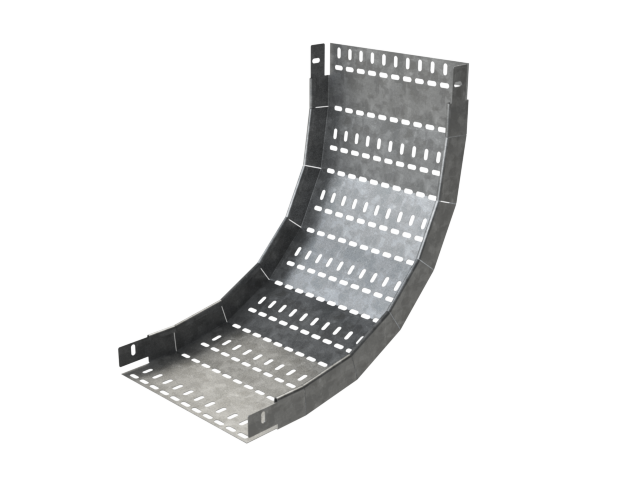

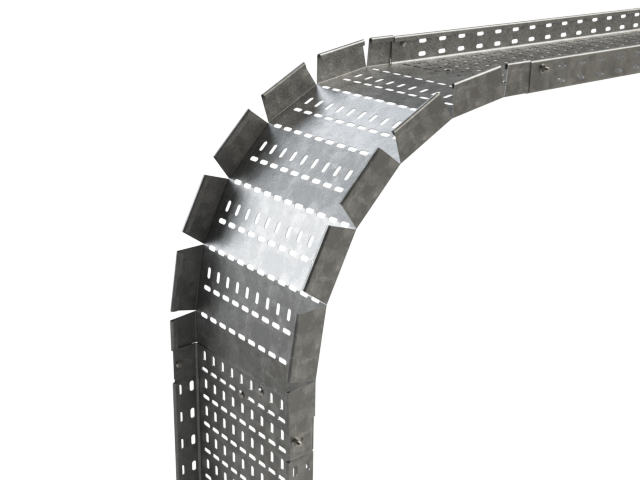

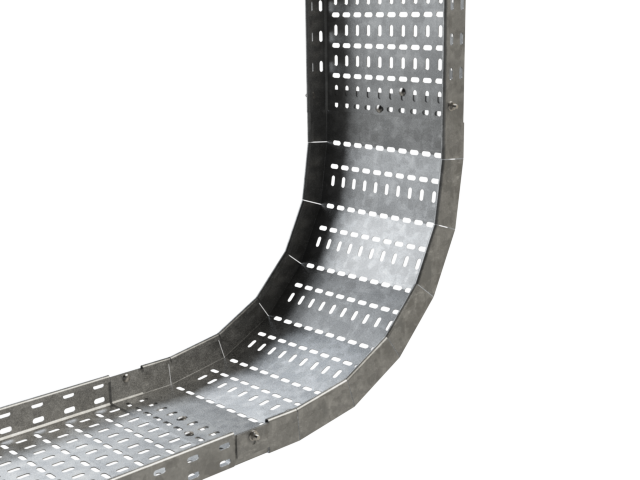

Vertical inside / outside bend CCXBS

General characteristics

	50 - 900 mm
	12 - 50 mm
	0.36 - 10.33 kg/m

Downloads
Gallery

Characteristics and references

				GS		GC		i316
				Reference	Weight	Reference	Weight	Reference	Weight
CCXBS 50X12	50	12	0	204229	0.36	204258	0.41	215039	0.36
CCXBS 75X12	75	12	0	204230	0.48	204259	0.56	215040	0.48
CCXBS 100X12	100	12	0	204231	0.6	204260	0.7	215041	0.6
CCXBS 150X12	150	12	0	204232	0.85	204261	0.98	215042	0.85
CCXBS 225X12	225	12	0	204233	1.22	204262	1.41	215043	1.22
CCXBS 300X18	300	18	0	204234	2.46	204263	2.75	215044	2.46
CCXBS 50X25	50	25	0	204239	0.5	204268	0.58	215045	0.57
CCXBS 75X25	75	25	0	204240	0.6	204269	0.71	215046	0.69
CCXBS 100X25	100	25	0	204241	0.71	204270	0.83	215047	0.81
CCXBS 150X25	150	25	0	204242	1.06	204271	1.23	215048	1.06
CCXBS 225X25	225	25	0	204243	1.43	204272	1.66	215049	1.43
CCXBS 300X25	300	25	0	204244	2.25	204273	2.57	215050	2.25
CCXBS 450X25	450	25	0	204245	3.81	204274	4.27	215051	3.81
CCXBS 600X25	600	25	0	204246	4.92	204275	5.51	215052	4.92
CCXBS 750X25X1.5	750	25	0	204247	7.54	204276	8.29	211349	7.54
CCXBS 900X25X1.5	900	25	0	204248	8.93	204277	9.82	211350	8.93
CCXBS 75X50	75	50	0	204249	0.84	204278	1.09	215053	0.84
CCXBS 100X50	100	50	0	204250	1.06	204279	1.23	215054	1.06
CCXBS 150X50	150	50	0	204251	1.31	204280	1.52	215055	1.31
CCXBS 225X50	225	50	0	204252	2.52	204281	2.82	215056	2.52
CCXBS 300X50	300	50	0	204253	3.07	204282	3.44	215057	3.07
CCXBS 450X50X1.5	450	50	0	204254	5.23	204283	5.75	215058	5.23
CCXBS 600X50X1.5	600	50	0	204255	6.62	204284	7.28	215059	6.62
CCXBS 750X50X1.5	750	50	0	204256	8	204285	8.8	215060	8
CCXBS 900X50X1.5	900	50	0	204257	9.39	204286	10.33	215061	9.39
